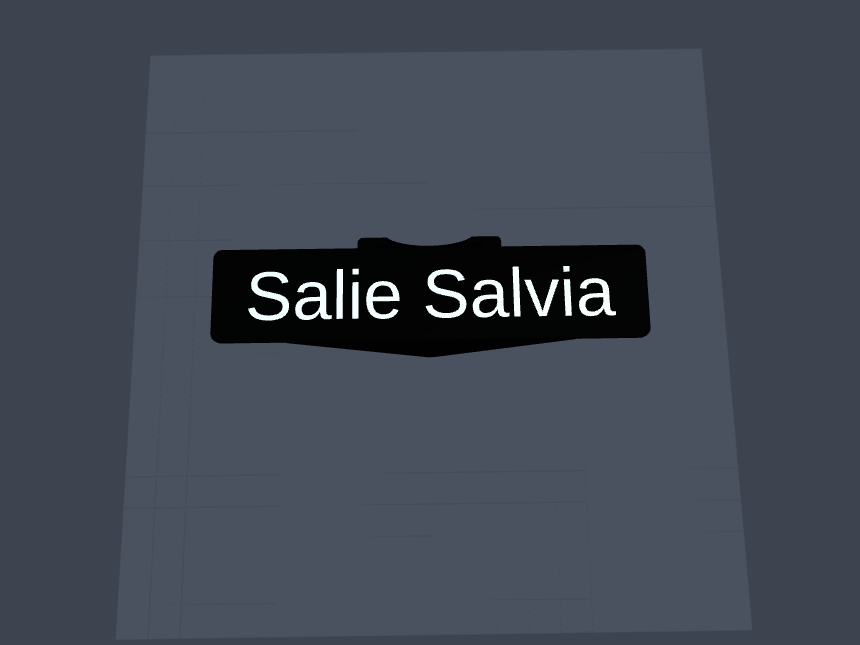

# Plank Label > A parametric 3D-printable plant label with embossed text, designed to clip onto garden bed planks or stakes. ## Description Plank Label generates a sturdy clip-on plant marker that attaches to the edge of a wooden plank or garden stake. It consists of two angled side wings, a flat top plate, and a clamping piece, with the plant name embossed directly into the top surface. The label text is fully configurable via a runtime parameter, making it easy to produce a complete batch of labelled markers for an entire herb or vegetable garden in one go. ## Files | File | Description | |------|-------------| | `planklabel.py` | PythonSCAD source file | | `label.3mf` | Ready-to-print label with default text | | `planklabel.3mf` | Combined 3MF with all parts on the build plate | | `README.md` | This file | ## Requirements ### Runtime - [PythonSCAD](https://pythonscad.org/) (OpenSCAD with Python scripting support) - Python 3.8+ ### Python Dependencies Only Python standard library modules are used directly (`os`, `shutil`) and indirectly via `mhlib` (`math`, `pathlib`, `json`, `sys`, `gc`, `dataclasses`, `datetime`, `typing`) — **no pip installation needed.** ### Custom Libraries (by author) | Library | Description | |---------|-------------| | `mhlib` | Core utility library providing geometry helpers (`plate`, `triangle`, `diff`, `spread_on_plate`, etc.), parameter loading (`loadParams`, `getParam`), and PythonSCAD convenience wrappers. Published separately by the author. | ## Configuration The following parameters can be adjusted at the top of `planklabel.py` or passed via `params_str` at runtime: | Parameter | Default | Description | |-----------|---------|-------------| | `label` | `"Salie Salvia"` | Text to emboss on the label surface | | `run` | `"all"` | Which part to render: `"all"`, `"label"`, or `"text"` | | `batch` | `0` | Set to `"1"` to enable batch mode: exports and renames the 3MF to the label text | | `xPlank` | `120` | Width of the label top plate (mm) | | `yPlank` | `22` | Depth of the label top plate (mm) | | `wall` | `2` | Wall thickness (mm) | | `zVleugel` | `50` | Height of the side wings (mm) | | `xVleugel` | `80` | Width of the side wings (mm) | | `xCM` | `40` | Width of the clamp piece (mm) | | `yCM` | `5` | Depth of the clamp piece (mm) | | `zCM` | `20` | Height of the clamp piece (mm) | | `plateSpacing` | `100` | Spacing between parts on the build plate (mm) | | `fn` | `128` | OpenSCAD arc resolution | ## Functions ### `zijde(r=90)` Generates one angled side wing of the label. The wing is a triangular plate rotated around the X axis to create the clamping angle. **Parameters** | Name | Type | Default | Description | |------|------|---------|-------------| | `r` | `float` | `90` | Rotation angle around X axis (degrees). Values slightly above/below 90 create the inward clamp angle. | **Returns:** A triangular wing solid, rotated and positioned at Z=0. --- ### `top()` Generates the flat rectangular top plate that connects the two side wings and carries the embossed label text. **Returns:** A rectangular plate solid (`xPlank` × `yPlank + 2*wall` × `wall`). --- ### `cmKlem()` Generates the clamp piece that grips the garden plank or stake. A slot and a cylindrical cutout are subtracted from the block to create the spring-clip clamping geometry. **Returns:** A rectangular block with a slot and cylinder subtracted, forming a spring-clip clamp. --- ### `print_label()` Assembles the complete label: two side wings, the top plate, and the clamp piece, with the text embossed into the surface via boolean subtraction. **Returns:** The full assembled label solid, ready to print. --- ### `print_text(txt=label, size=14, h=1)` Generates the embossed text geometry used to subtract lettering from the label surface. **Parameters** | Name | Type | Default | Description | |------|------|---------|-------------| | `txt` | `str` | `label` (runtime param) | The text string to render | | `size` | `float` | `14` | Font size (mm) | | `h` | `float` | `1` | Extrusion depth of the text (mm) | **Returns:** A linearly extruded text solid, coloured red for preview visibility, rotated for top-surface subtraction. --- ## Usage ```python # Render with default label text # Open planklabel.py in PythonSCAD and press F5/F6. # Change the label text at runtime: params_str = "label=Basilicum Ocimum" # Batch mode — exports and renames the 3MF to the label text: params_str = "label=Rozemarijn;batch=1" ``` 1. Open `planklabel.py` in PythonSCAD. 2. Set the `label` parameter to the desired plant name via `params_str` or by editing the default in the file. 3. Press **F5** for a quick preview or **F6** for a full render. 4. In non-preview mode, the `.3mf` is automatically exported to `~/pyscad_drawings/slicer_files/planklabel/`. 5. For a full batch of labels, set `batch=1` — each export is automatically renamed to the label text. ## License This design is released into the public domain under the [Creative Commons Zero v1.0 Universal (CC0 1.0)](https://creativecommons.org/publicdomain/zero/1.0/) license. You may copy, modify, distribute, and use this work for any purpose, including commercial use, without asking permission or giving credit.

5 source files included
