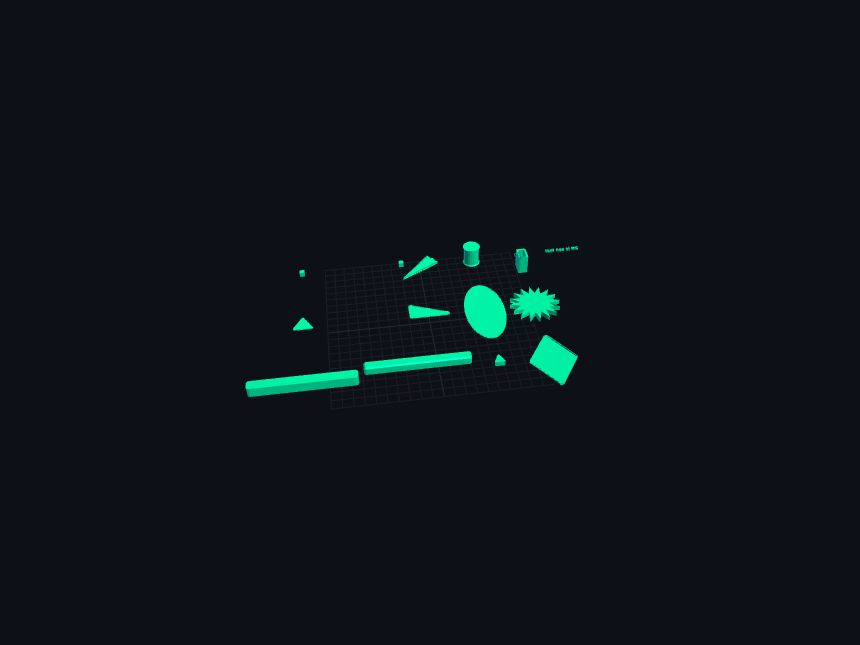

# mhlib cheatsheet ## 📦 Import ```python from mhlib import * ``` --- ## 🔧 Transformation Functions ### Translation (Move) ```python mvx(object, x) # Move along X-axis mvy(object, y) # Move along Y-axis mvz(object, z) # Move along Z-axis mv(object, x, y, z) # Move in 3D space ``` ### Rotation ```python rotx(object, degrees) # Rotate around X-axis roty(object, degrees) # Rotate around Y-axis rotz(object, degrees) # Rotate around Z-axis rot(object, x, y, z) # Rotate around all axes ``` --- ## 🎨 Basic Shapes ### Tube ```python tube(height=10, dia=10, wall=1) # height = height of tube # dia = outer diameter # wall = wall thickness ``` --- ## 📐 2D Shapes (with height) ### Plate / Rectangle ```python plate(s1=10, s2=None, height=1, point_dia=0.2, point_shape="cylinder", center=True) # s1 = width (if s2=None, creates a square) # s2 = length # height = extrusion height # point_dia = corner rounding diameter # point_shape = "cylinder" or "sphere" # center = centered at origin ``` ### Triangle ```python triangle(s1=10, s2=None, s3=None, height=1, point_dia=0.2, point_shape="cylinder", is_right=False) # Equilateral: triangle(10) # Isosceles: triangle(10, s2=15) # Right-angled: triangle(10, 20, is_right=True) # Arbitrary: triangle(10, 15, 18) ``` ### Diamond / Rhombus ```python diamond(xdia, ydia, point_dia=0.2, point_shape="cylinder", height=1) # xdia = diagonal along X-axis # ydia = diagonal along Y-axis diamond(40, 60, height=2) ``` ### Ellipse / Oval ```python ellipse(xdia, ydia, resolution=64, point_dia=0.2, point_shape="cylinder", height=1) # xdia = diameter along X-axis # ydia = diameter along Y-axis ellipse(40, 80, resolution=128, height=3) ``` ### N-gon (Polygon) ```python ngon(sides=5, dia=10, point_dia=0.2, point_shape="cylinder", height=1) # sides = number of sides # dia = diameter (circumscribed circle) ngon(6, 20, height=2) # Hexagon ngon(8, 15, height=3) # Octagon ``` ### Star ```python star(sides=5, outer_dia=30, inner_dia=20, height=1) # sides = number of points # outer_dia = outer diameter # inner_dia = inner diameter star(5, 30, 15, 5) # 5-pointed star star(8, 40, 25, 3) # 8-pointed star ``` --- ## 🎯 Point Class & Custom Shapes ### Point Definition ```python Point(x, y, z=0, point_shape=None, point_dia=None, height=None) ``` ### Helper Functions for Points ```python # Diamond points _generate_diamond_points(xdia, ydia) # Ellipse points _generate_ellipse_points(xdia, ydia, resolution=64) # Regular polygon points _generate_regular_polygon_points(sides, dia) # Star points _generate_star_points(points_n, outer_dia, inner_dia) ``` ### Creating Custom Shapes ```python # 1. Define points points = [ Point(x=0, y=0), Point(x=10, y=0), Point(x=5, y=10) ] # 2. Convert to full points with properties full_points = createPoints( z=0, point_dia=0.2, height=5, point_shape="cylinder", p=points ) # 3. Create shape using hull shape = createEnclosure(full_points) show(shape) ``` --- ## ⚙️ Parameters (JSON Configuration) ```python # Load parameters from JSON string loadParams(params_str='{"width":10,"height":20}', verbose=False) # Retrieve parameter with default fallback width = getParam('width', default=10) height = getParam('height', default=20) ``` **Command line usage:** ```bash pythonscad -D'params={"width":30,"height":50}' script.py ``` --- ## 📊 Default Constants ```python POINT_SHAPE = "cylinder" # Default shape: "cylinder" or "sphere" POINT_DIA = 0.2 # Default diameter for corner rounding POINT_HEIGHT = 1 # Default height ``` --- ## 💡 Practical Examples ### Simple Shapes ```python # Rounded square plate show(plate(50, height=10, point_dia=5)) # Right-angled triangle show(triangle(40, 30, height=5, is_right=True)) # 8-pointed star show(star(8, 50, 30, 5)) # Hollow tube show(tube(height=20, dia=15, wall=2)) ``` ### Combined Transformations ```python # Create, rotate, and move a shape shape = triangle(20, height=5) shape = rotz(shape, 45) shape = mv(shape, 10, 20, 5) show(shape) ``` ### Custom Shape with Specific Points ```python # Trapezoid example points = [ Point(x=-20, y=0), Point(x=20, y=0), Point(x=15, y=30), Point(x=-15, y=30) ] pts = createPoints(p=points, point_dia=1, height=5) show(createEnclosure(pts)) ``` ### Using Parameters ```python # Load configuration loadParams('{"size":50,"thickness":3}') # Use parameters in design size = getParam('size', 30) thickness = getParam('thickness', 2) show(plate(size, height=thickness)) ``` --- ## 🎨 Tips & Tricks 1. **Corner Rounding:** - Smaller `point_dia` = sharper corners - Larger `point_dia` = more rounded corners 2. **Point Shape Options:** - `"cylinder"` or `"c"` = rounded only at top/bottom edges - `"sphere"` = fully rounded corners in all directions 3. **Resolution for Curves:** - Higher `resolution` for ellipse = smoother curve (but slower rendering) - Default 64 is usually sufficient 4. **Center Parameter:** - `center=True` (default) = shape centered at origin - `center=False` = shape positioned from origin point 5. **Star Inner/Outer Ratio:** - Smaller `inner_dia` relative to `outer_dia` = sharper star points - Similar values = flatter star shape --- ## 📝 Important Notes - **Units:** All dimensions are in millimeters (OpenSCAD default) - **Height Parameter:** Determines Z-extrusion of 2D shapes into 3D - **Hull Operations:** Library uses `hull()` to create smooth rounded corners - **Rendering:** Use `show()` to display shapes in OpenSCAD - **Combining Shapes:** Compatible with standard OpenSCAD operations: - `union()` - combine shapes - `difference()` - subtract shapes - `intersection()` - intersect shapes --- ## 🔄 Function Parameter Quick Reference | Function | Primary Params | Optional Params | | --- | --- | --- | | `plate()` | `s1`, `s2` | `height`, `point_dia`, `point_shape`, `center` | | `triangle()` | `s1`, `s2`, `s3` | `height`, `point_dia`, `point_shape`, `is_right` | | `diamond()` | `xdia`, `ydia` | `height`, `point_dia`, `point_shape` | | `ellipse()` | `xdia`, `ydia` | `resolution`, `height`, `point_dia`, `point_shape` | | `ngon()` | `sides`, `dia` | `height`, `point_dia`, `point_shape` | | `star()` | `sides`, `outer_dia`, `inner_dia` | `height` | | `tube()` | `height`, `dia`, `wall` | \- | --- ## 🚀 Getting Started ```python from mhlib import * # Simple example: rounded rectangular plate show(plate(50, 30, height=5, point_dia=3)) # More complex: star with transformations my_star = star(6, 40, 20, 3) my_star = rotz(my_star, 30) my_star = mvz(my_star, 10) show(my_star) ```

23 source files included
